Silent Sound is a high performance acoustical material made from recycled cotton. This product is ideal for noise control applications. Silent Sound can be used as an acoustic wall panel or hanging baffle. Common applications are school gyms, classrooms, lunch rooms and any application where a high performance noise control product is needed. Silent Sound is eligible for LEED™ credits, Class A fire rated and 100% recyclable.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
White | Black | Marble Light Blue | Light Grey | Graphite | Burgundy |
![]() |
![]() |
![]() |
![]() |
*Beige is a custom color and may not always be available. Dye lots are subject to color variation. Please consult with ASI before specifying or ordering this color. |
|
Pure Blue | Navy Blue | Hunter Green | Beige* |
APPLICATIONS: Bonded Acoustical Cotton panels are ideally suited to school gymnasiums, cafeterias, classrooms, churches, multi-purpose rooms, community centers and more.
SIZES: Standard Size – 2′ × 4′
Also available in 12″ × 12″, 2′ × 2′, 4′ × 4′ and 4′ × 8′ (Minimum quantities may apply, please call for details)
DENSITIES: 3lb per cubic ft – 1″ & 2″ thickness panels; 6lb per cubic ft – 1″ thickness panels

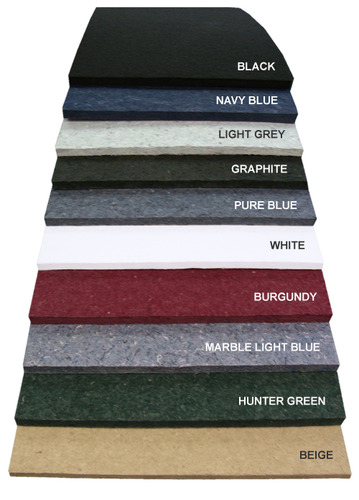

COLORS: White, Marble Light Blue, Light Grey, Beige*, Graphite, Pure Blue, Navy Blue, Burgundy, Hunter Green and Black
Please note: Although we take extensive precautions and purge the lines between colors, due to the manufacturing process color inconsistencies – including dye lot variations – flecks, specks, and other slight surface blemishes are unavoidable. Please call for details.
All sizes are nominal and are subject to manufacturing tolerances that may vary ±1/8″. Exact fitting may require on site adjustment by the purchaser. Exact size and other unavoidable variables such as dye lot color variances, lighting conditions, pattern matching, directional materials, expansion and contraction due to environmental conditions. Project with exacted visual requirements and expectation must be identified for our special attention prior to ordering.
Silent Sound™ WALL PANEL – Sound Absorption Coefficients | ||||||||
---|---|---|---|---|---|---|---|---|
Mount | 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | NRC | |
1″ – 3lb./cf. | A | .08 | .31 | .79 | 1.01 | 1.00 | .99 | .80 |
2″ – 3lb./cf. | A | .35 | .94 | 1.32 | 1.22 | 1.06 | 1.03 | 1.15 |
1″ – 6lb./cf. | A | .07 | .30 | .86 | 1.10 | 1.05 | 1.03 | .85 |
3/8″ – 6lb./cf. | A | .12 | .10 | .23 | .56 | .81 | .89 | .45 |
Silent Sound™ BAFFLE – Sabins/Baffle | |||||||
---|---|---|---|---|---|---|---|
Avg. | 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | Sabins/Avg. |
1″ – 2′ × 4′ | 2.43 | 4.93 | 8.34 | 12.35 | 15.57 | 16.73 | 10.30 |
2″ – 2′ × 4′ | 2.40 | 6.55 | 12.86 | 17.46 | 18.49 | 16.77 | 13.85 |
